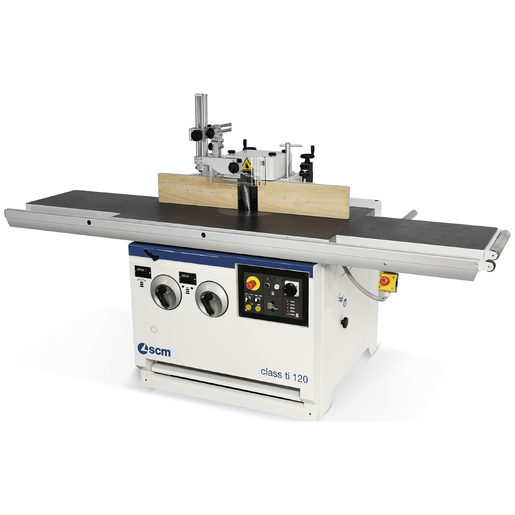

class ti 120 Spindle moulder

Starting from 拢11,010.00

(Price does not include VAT and delivery)

The best solution for every application.
Precision and reliability with the the technological devices that guarantee reduced machine set up times, greater safety and ease-of-use.
聽

Added to Your Shopping Cart

Advantages

<p><strong>Set up precision and reliability.</strong>聽The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine.</p>

Set up precision and reliability.聽The operator easily adjusts all movements due to a hand wheel with mechanical decimal readouts located on the front of the machine.

<p><strong>Spindle moulder fence with mechanical programming</strong>: maximum set-up speed and ease-of-use.聽<strong>No more test runs</strong>聽due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.</p>

Spindle moulder fence with mechanical programming: maximum set-up speed and ease-of-use.聽No more test runs聽due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.

<p><strong>Easy access to the spindle to carry out different machining</strong> with the optional "Flex" system for the rapid exclusion of the fence from the working table.</p>

Easy access to the spindle to carry out different machining with the optional "Flex" system for the rapid exclusion of the fence from the working table.

Specs

TECHNICAL FEATURES
Max. useful spindle length	mm / inches	140 / 5.5
Spindle speed	rpm	3000/4500/6000/7000/10000
Max. diameter of the profiling tool	mm / inches	250 / 9.8
Max. tool diameter retractable under the table at 90Â°	mm / inches	300 / 11.8
Max. diameter of the tenoning tool	mm / inches	300 /11.8
Three-phase motor	Hp	11
